IGBT Stacks & Accessories

Standard Range of IGBT Stacks Medium Power

Standard range of IGBT stacks assemblies with IGBT power modules. Mostly, in these series we work with 34mm, 62mm and Econo-dual modules up to 1700V and with standard topologies for AC/DC and DC/DC power converters. Including all the necessary, drivers, sensors, etc.

IGBT Stacks Modular Concept

Designed three main blocks, rectifier block/DC-link/inverter to give an answer to the demand of this kind of power stack technologies. Any of these three blocks can be easily adapted to the application requirements. From this starting point, we can customize as per design in collaboration with our customers.

Customized Design of IGBT Stacks

We are able to deliver a complete power assembly, from designing to implementation, production and industrialization, meeting the required targets and providing a value added to any proposed design. Rectificadores Guasch along with our partners have a wide range of semiconductors, drivers, high efficiency cooling systems, bus-bars, snubbers, DC link capacitor banks MKP and electrolytic as well as the necessary mounting hardware to succeed on any power converter design.

MTM Modular Series

MTM Modular Series covers the medium power range of IGBT stacks with a compact design, a half bridge topology and capacitor bank this series of IGBT assemblies part as a constructive solution which allows a high versatility to compose customized IGBT power equipment. By simply stacking half-bridge modules a great range of topologies can be implemented, as choppers, three-phase inverters, back-to-back converters, etc.

Highlights:

Topology : 1/2B2IC
Capacitor bank included
Modular system
Current, voltage and temperature sensors included
Easy to parallel

Topology	Reference	IGBT Vce [V]	I max [A]
1/2B2IC	MTM-1/2B2IC0225F12HB	1200	105
MTM-1/2B2IC0225F12IB	1200	130
MTM-1/2B2IC0450F12JB	1200	200
MTM-1/2B2IC0450F12KB	1200	240

MTM Standard Series

MTM Standard Series covers the medium power range of IGBT stacks designed as a modular concept in stages (rectifier/DC-link/inverter) easily scalable. B6I and B2I topologies with medium-range power IGBT modules (industry’s standard 62 mm). Current, voltage and temperature sensors included along sensor concentrator-adaptator board. Optical interface also available.

Highlights:

Topologies : B2I, B6I
Power: up to 300 kW (5 kHz)
Modular system
Sensor board included
Optical interface available

Topology	Reference	IGBT Vce [V]	I max [A]
B2I	MTM-B2I0200F12BA	1200	190
MTM-B2I0300F12BA	1200	280
MTM-B2I0450F12BA	1200	400
MTM-B2I0200F12BA	1700	140
MTM-B2I0300F17BA	1700	170
B6I	MTM-B6I0200F12BA	1200	190
MTM-B6I0300F12BA	1200	270
MTM-B6I0450F12BA	1200	330
MTM-B6I0200F17BA	1700	120
MTM-B6I0300F17BA	1700	170

MTM 34mm Compact Series

MTM 34mm Compact Series is a very compact desing of IGBT 2-level with neutral point capacitor bank power stacks in B6I and B8I topologies (other topologies under demand). This stack includes the IGBT modules, forced air heatsink, electrolytic capacitor bank and optoisolated drivers. Allows the implementation of converters, choppers, inverters for motor control, welding inverters, UPS or renewable energies, etc. This stack does not include the control’s logic, that is customer proprietary.

Highlights:

Multi-function IGBT converter
Capacitor bank with neutral point
Integrated drive units offering desaturation fault detection, power-supply failure, interlock of IGBTs and galvanic isolation
Forced-air cooled in a very compact design

Topology	Reference	IGBT Vce [V]	I max [A]	Pdf
B6I	MTM-B6I0100F12IG	1200	40
B8I	MTM-B8I0100F12IG	1200	40

GPT-IGBT

GPT-IGBT is a education stack for motor control and inverter applications, this stack can easily implement many different topologies using its B6U + CB + BRAKE + B6I + 1/2B2I layout. This stack includes IGBT modules, heatsink, optoisolated drivers, 4x output current sensors, 1x DC-link voltage sensor and temperature monitoring. Allows the implementation of converters, choppers, inverters for motor control, welding inverters, UPS or renewable energies, etc. This stack does not include the control’s logic, that is customer proprietary.

Highlights:

Multi-function IGBT converter
Transparent enclosure to allow visualization of every part
Integrated current sensors
Integrated voltage sensor
Integrated drive units offering desaturation fault detection, power-supply failure, interlock of IGBTs and galvanic isolation
Forced-air cooled in a compact design

Customized Stacks

Besides our standard medium power IGBT power stacks we also can design and assemble, produce and industrialize any power converter proposed by our clients and partners. A great range of customized designs can be implemented with EconoDUAL and industry’s standard 62 mm and 34 mm modules using our high efficiency profiles or with liquid cooling heatsinks.

Capabilities and options:

Any topology or converter proposed
Wide power range
Current and voltage sensors
Drivers and protections included
Cooling system included

Completely new modular designs of 1/2B2I topology with EconoDUAL modules, easily stackable permitting a neat way to fully customize your designs using a single reference of IGBT+DC-Link stack which also includes the driver systems and all the needed current and voltage sensors.

We can also develop and integrate any of our designs and medium power IGBT stacks on a cabinet along all the protections and electronics surrounding the main power stack to offer a complete turnkey solution.

Please do not hesitate to ask us about your design or application needs.

SCR & Diode Press-Pack Stacks

Power Stacks, SCR & Diode Stacks

GUASCH

offers you

STACKS

SCR & DIODE STACKS

SCR & Diode Press-Pack Stacks

SCR & DIODE PRESS-PACK STACKS

TQ Series

by GUASCH

RP Series

by GUASCH

SC Series

by GUASCH

Need more information about this product?

SCR & Diode Press-Pack Stacks for Power Electronics

TQ Series

Thyristor and diode modular system with high reliability thanks to the construction with press-pack devices. Standard types available (and possibility of customizing), optimized and codified, natural or forced cooling, this series includes tested protection (thermal switch, ultrarapid fuses and RC network). You can get from this series a complete industrial rectifier, ready to use.

Highlights:

B6C, B6U, W1C, W3C topologies
M1U under requirement
Standard range
Datasheet by type
Compact design
Ready to connect

Topology	Reference	I_{RMS MAX.} / IN A_DC	V_RRM	Cooling	Dimensions [mm]
B6C	TQ-B6C1150F12RCVTF	1150 A	1200 V	forced	375x660x577
TQ-B6C1650F12RCVTF	1650 A	1200 V	forced	375x660x577
TQ-B6C2350F12RCVTF	2350 A	1200 V	forced	375x660x577
TQ-B6C3300F12RCVTF	3300 A	1200 V	forced	375x660x577
TQ-B6C3010F18RCVTF	3010 A	1800 V	forced	375x660x564
B6U	TQ-B6U2015F12RCVTF	2015 A	1200 V	forced	375x660x577
TQ-B6U2750F12RCVTF	2750 A	1200 V	forced	375x660x577
TQ-B6U2750F20RCVTF	2750 A	2000 V	forced	375x660x577
TQ-B6U3375F06RCVTF	3375 A	600 V	forced	375x660x577
TQ-B6U3545F12RCVT	3545 A	1200 V	forced	375x660x577
W3C	TQ-W3C1990F20RCVTF	1994 A	2000 V	forced	660x564x369
TQ-W3C2300F18RCVTF	2344 A	1800 V	forced	660x564x369
TQ-W3C2900F12RCVTF	3017 A	1200 V	forced	660x564x369
W1C	TQ-W1C1990F20RCVTF	1994 A	2000 V	forced	260x564x369
TQ-W1C2300F18RCVTF	2344 A	1800 V	forced	260x564x369
TQ-W1C2900F12RCVTF	3017 A	1200 V	forced	260x564x369
TQ-W1C3800F18RCVTF	3882 A	1800 V	forced	460x564x369
TQ-W1C5400F12RCVTF	5400 A	1200 V	forced	460x564x369

TK Series

W1C power stacks of medium power. Its configuration make easy to use in AC switches and change of polarity. Thyristors are selected for this series in order to get the best performance. Standard working voltage is 400VRMS but can be made in higher types. Highlights: W1C topologies Standard range High efficiency Standard working voltage up to 400V Ready to connect Selected thyristors pairs	Related Downloads
Related Downloads

RP Series

Complete stacks with thyristors and diodes that allows to get the main power topologies. This series is the upper step of the power module systems, when the power module design arrive to the limit, this series is the next solution. Made with our 4 different heatsink profiles from RG15000 extruded series and habitual press-pack devices available from our stock.

Highlights:

Wide range topologies
Long term reliability
Overload capacity
Ready to connect
Low cost

HP Series

HP series are an air cooling block design “heatsink+semiconductor+heatsink” that can be mounted at a customer convenience in industrial systems, we offer a calculate performance guide calculation depending on application circuit and cooling system. Habitually used in big surface treatment rectifiers and air cooling high power industrial systems.

Highlights:

Modular system
Flexible application
High efficiency
Overload capacity
Ready to use
Working voltage up to 400 VRMS

SW Series

High power liquid cooling systems. Can be mounted with high frequency thyristors, phase control thyristors or diodes. These systems can be customized under customer requirements. Habitually used in induction heating systems or big industrial systems where the liquid cooling is easily available.

Highlights:

B6C, M3.2U topologies
Liquid cooling
Datasheets by type
Ready to use

Topology	Reference	I_{IN A_DC}	V_RRM	Cooling	Dimensions [mm]
B6C	SW-B6C1900W12T	1926 A	1200 V	liquid	620x200x85
TQ-B6C1650F12RCVTF	2722 A	3000 V	liquid	620x200x85
TQ-B6C2350F12RCVTF	2817 A	1200 V	liquid	620x200x85
SW-B6C2900W12T	2997 A	1200 V	liquid	620x200x85
M3.2U	SW-M3.2U5250W12T	5250 A	2000 V	liquid	700x200x85
SW-M3.2U6240W12T	6240 A	2000 V	liquid	700x200x85

SC Series

W1C liquid cooled anti-parallel thyristor power stacks. This series is suited for AC switches in welding by resistance. Due to its reliable and compact design are used in industrial cabinets with aggressive atmosphere and strongly recommended for demanding applications.

Highlights:

W1C topology
Standard range
Datasheets by type
Easy mounting
Ready to use

Topology	Reference	I_{IN A_DC}	I_TSM / A	I_2t	Contact [mm]
W1C	SCx-W1C0605W12VT	605 A	5120 A	131000	19
SCx-W1C0960W12VT	960 A	5120 A	131000	19
SCx-W1C1000W12VT	1000 A	9270 A	430000	25
SCx-W1C1640W12VT	1640 A	9270 A	430000	25
SCx-W1C2175W12VT	2175 A	12650 A	800000	34
SCx-W1C3300W12VT	3300 A	29900 A	4470000	47
SC1-W1C3490W12VT	3490 A	32500 A	5280000	47

HW Series

HW series are a liquid cooling block design “heatsink-semiconductor-heatsink” that can be mounted at a customer convenience in industrial systems. Can be mounted as a free-wheeling diode or to combine each block to create a complete high power topologies.

Highlights:

Modular system
Flexible application
High efficiency (optimized)
Long term reliability
Overload capacity
Short delivery time
Low cost
Topologies: M1U, M1C, B2U, W1C…
Other topologies by demand
Ready to use

Topology	Reference	V_{RMS MAX.} [V]	I_TSM [kA]	I²t [kA²s]	Cooling
M1U	HW-RG75110-W3270NC200	660	33	5450	liquid
HW-RG75110-W4534NC060	250	40	8000	liquid
HW-RG75110-W4096NC450	1500	41.7	8700	liquid
HW-RG75110-W5092NC350	1100	58	16800	liquid
HW-RG75110-W8405NC060	250	72	25920	liquid
M1C	HW-RG75110-N1467NC240	700	21.5	2310	liquid
HW-RG75110-N2500VC160	530	37	6850	liquid
HW-RG75110-N4085ZC120	400	64	20500	liquid

Extruded Profiles

Heatsinks, Thermal Management

GUASCH

offers you

HEATSINKS

EXTRUDED HEATSINKS

Highly customizable

On-demand machining and finish

Wide range of extruded profiles

Need more information about this product?

Extruded Heatsinks & Accessories for Power Electronics

Extruded Heatsinks Profiles

Market’s standard heatsink profiles, our own profiles and exclusive designed profiles for medium and high power heatsinks. We have our own CNC machining shop providing us the capacity to do all the machining or milling process to answer and meet all our customer’s requirements in a minimum delivery time with superior quality.

RG6000 Series


RG06061	RG06087

Reference	Size [mm]	Weight [gr/m]	Perimeter [mm]	Section [mm²]	Pdf
RG06061	105×38	2790	860	1036
RG06087	88×35	2605	653	1020

RG7000 Series


RG07013	RG07086	RG07089

Reference	Size [mm]	Weight [gr/m]	Perimeter [mm]	Section [mm²]
RG07013	125×125	15550	2438	5759
RG07086	125×135	17640	2283	6532
RG07089	125×135	14660	2502	5430

RG10000 & RG11000 Series


RG10014	RG10084	RG10090	RG11087	RG11205

Reference	Size [mm]	Weight [gr/m]	Perimeter [mm]	Section [mm²]
RG10014	100×120	15470	1640	5731
RG10084	60×40	3262	686	1208
RG10090	70×132	12800	1560	4738
RG11087	120×120	11110	2050	4113
RG11205	107×107	7000	1707	2592

RG14000 Series


RG14015	RG14016	RG14051	RG14060	RG14065

RG14067	RG14068	RG14070	RG14071	RG14072

RG14074	RG14076	RG14082	RG14092	RG14220

RG14229	RG14230	RG14236	RG14351	RG14369

RG14709		RG14710	RG14711

Reference	Size [mm]	Weight [gr/m]	Perimeter [mm]	Section [mm²]
RG14015	100×40	5890	793	2068
RG14016	100×40	5830	875	2161
RG14051	100×81	8630	1342	3195
RG14060	197×20	5495	1064	2035
RG14065	150×27	5273	1334	1866
RG14067	150×39,5	7268	1239	2691
RG14068	160×40	8640	1250	3201
RG14070	200×25	5338	1533	1992
RG14071	200×40	10800	1565	3854
RG14072	200×40	13230	1850	4128
RG14074	83×150	12358	1833	4577
RG14076	83×200	19900	3022	7361
RG14082	250×40	13230	1992	4502
RG14092	300×40	15730	2310	5823
RG14220	300×25	9010	1956	3337
RG14229	200×72	17318	2621	6414
RG14230	215×77	21860	2921	8096
RG14236	215×77	23960	2966	8872
RG14351	300×83	23656	3830	8761
RG14369	300×84	28435	3747	10531
RG14709	400×85	35766	6517	13246
RG14710	500×85	44512	8140	16486
RG14711	600×85	53259	9770	19725

RG15000 Series


RG15147	RG15168	RG15390

RG15560	RG15720	RG15840

Reference	Size [mm]	Weight [gr/m]	Perimeter [mm]	Section [mm²]
RG15147	210×22	3750	918	1339
RG15168	128×57	5480	1258	2028
RG15390	240×112	29723	2466	11008
RG15560	150×73	9600	1586	3553
RG15720	200×84	19000	2193	6981
RG15840	240×108	26100	2969	9176

High Power IGBT Stacks

IGBT Stacks

GUASCH

offers you

IGBT STACKS

HIGH POWER IGBT STACKS

MTH Series

SP Series

Customized

HIGH POWER IGBT STACKS

MTH Series

by GUASCH

HIGH POWER IGBT STACKS

MTH Modular Series

by GUASCH

Need more information about this product?

IGBT Stacks & Accessories

Standard Range of IGBT Stacks

Standard range of IGBT stacks assemblies with high power IGBT modules as PrimePACK and Press-Pack modules. We offer the standard topologies for AC/DC and DC/DC power converters as B6I and B2I. All our standard assemblies includes along the power semiconductors and heatsink system, the IGBT drivers for each semiconductor and all the needed sensors, output currents and DC-Link voltage.

IGBT Stacks Modular Concept

Our MTH series are designed as a two main blocks, IGBT+DC-Link block and rectifier block in order to to give a quick assembly answer to the demand of this kind of power stack technologies. All our standard references can be easily adapted to the final application requirements. From this starting point, we can customize as per design in tight collaboration with our customers.

Customized Design of IGBT Stacks

We are able to deliver a complete power assembly, from designing to implementation, production and industrialization, meeting the required targets and providing a value added to any proposed design. Rectificadores Guasch along with our partners have a wide range of semiconductors, drivers, high efficiency cooling systems, bus-bars, snubbers, DC link capacitor banks MKP and electrolytic as well as the necessary mounting hardware to succeed on any power converter design.

MTH Modular Series

MTH Modular Series designed for high power systems up to 700 kW. Modular (1/2B2IC) simplifying the assembly of B2I/half bridge, B6I, B8I or back-to-back topologies by stacking modules. Current, voltage and temperature sensors in a single connector interface. Optical interfaces also available.

Highlights:

1/2B2I topologies
Up to 700 kW (1-2kHz)
Voltage/current sensors included
Optical interface available

MTH Series

MTH Series designed for high power systems up to 700 kW. B6I and B2I topologies with high power IGBT modules. Current, voltage and temperature sensors included along sensor concentrator-adaptator board. Optical interface also available.

Highlights:

B2I and B6I topologies
Up to 700 kW (1-2kHz)
Sensor board included
Optical interface available

Topology	Reference	Module	IGBT Vce [V]	I max [A]
B2I	MTH-B2I0450F12INDP	FF450R12IE4	1200	420
MTH-B2I0600F12INDP	FF600R12IE4	1200	570
MTH-B2I0900F12INDP	FF900R12IE4	1200	720
MTH-B2I1400F12INDR	FF1400R12IP4	1200	970
MTH-B2I0450F17INDP	FF450R17IE4	1200	370
MTH-B2I0650F17INDP	FF650R17IE4	1700	450
MTH-B2I1000F17INDR	FF1000R17IE4	1700	700
B6I	MTH-B6I0450F12INEP	FF450R12IE4	1200	420
MTH-B6I0600F12INEP	FF600R12IE4	1200	570
MTH-B6I0900F12INEP	FF900R12IE4	1200	710
MTH-B6I1400F12INER	FF1400R12IP4	1200	940
MTH-B6I0450F17INEP	FF450R17IE4	1700	350
MTH-B6I0650F17INEP	FF650R17IE4	1700	410
MTH-B6I1000F17INER	FF1000R17IE4	1700	610

SP Series

IGBT assemblies in press pack format. Press pack IGBTs reduce the explosion risk, improve power cycling performance as well as provide better short circuit behaviour compared with modules. Also the stray inductance in both gate and emmitter connections is reduced. SP stacks are built with 2500V & 4500V IGBTs, suitable for wide range of high power IGBT assemblies.

Highlights:

Topologies: 1/2B2I, B2I y B6I
Strong reliability
Good short circuit behaviour
High voltage ratings
Water cooling
Ready to use

Topology	Reference	Type	Press-Pack	I_MAX.[A]	IGBT VCE_MAX.[V]	Pdf
B6I	SP-B6I1800W45WEDH	H	T1800GA45A	1800	4500
SP-B6I1800W45WEDV	V	T1800GA45A	1800	4500

Press-Fit Diodes Stacks

Power Stacks, SCR & Diode Stacks

GUASCH

offers you

STACKS

SCR & DIODE STACKS

Press-Fit Diodes

PRESS-FIT DIODES

PF series plate A (1,5 mm)

by GUASCH

PF series plate C (1,5 mm)

by GUASCH

Need more information about this product?

Press-fit Diodes stacks for Power Electronics

Standard power stacks with press-fit diodes:

PF series plate A (1,5 mm)

Press-fit diode bridge rectifiers fitted in 1,5mm plates.1~ and 3~ versions, standard types are black painted to improve the performance in natural air cooling conditions. Input voltage up to 125VRMS. Main application for this series is battery chargers and welders without forced air available.

PF series plate C (1,5mm)

Press-fit diode bridge rectifiers fitted in 1,5mm plates. 3~ versions, standard types are black painted to improve the performance in natural air cooling conditions. Input voltage up to 125VRMS. Main application for this series is battery chargers and welders without forced air available.

PF series plate E (3mm)

Press-fit diode bridge rectifiers fitted in 3mm plates.1~ and 3~ versions, all types are calculated for forced air cooling. Input voltage up to 125VRMS. Main application for this series is battery chargers and welders with forced air cooling.

Specific power stacks with press-fit diodes:

Special types

Thanks to the own manufacturing process, we can adapt and customise our products to meet welder and battery manufacturers requirements. We can do special variations for high volumes, including 1000VRRM diodes and terminals, please ask our sales department about all the possibilities we can offer to you.

Drop voltage systems

Drop voltage systems by press-fit diodes. Best performance and price for power requirements thanks to the manufacturing in press-fit technology. Forward voltage and dimensions versus number of plates (series connection), repetitive reverse voltage 400 V_RRM and up to 860A for continuous working.

IXYS

PARTNERS

IXYS

"Efficiency Through Technology"

OFFICIAL DISTRIBUTOR

We are the official distributor of Ixys semiconductors for Spain and Portugal markets. All its portfolio available, and a great range of their products from our stock for an immediate delivery.

WORLDWIDE COMPANY

IXYS is a worldwide power electronic semiconductor manufacturer company with headquartes in Canada and several other divisions around the world. Offers a wide range of diodes, fast diodes, thyristors, IGBT’s and Mosfet’s. IXYS offers you DCB (Direct Copper Bonding) base that improves the thermal resistance and performance as an experienced technology from power modules manufacturing process.

All IXYS Items

Some of the main components offered by Ixys are IGBT Discretes with XPT technology, BiMOSFETs, and High voltage types 1700V up to 4500V, etc. With IGBT Modules CBI modules Six-Packs Multi Level configurations and Half Bridge and Boost modules, also offering Standard Rectifiers, Schottky Diodes and Fast Rectifiers.
view IXYS items

Would you like more information about IXYS?

screw-type-encapsulated-bridge-scr-diode-stacks-e-guasch-com

Screw Type & Encapsulated Bridge Stacks

Power Stacks, SCR & Diode Stacks

GUASCH

offers you

STACKS

SCR & DIODE STACKS

Screw Type & Encapsulated Bridge

ENCAPSULATED BRIDGE

CF series

by GUASCH

SCREW TYPE

RR series

by GUASCH

Need more information about this product?

Screw Type & Encapsulated Bridge Stacks for Power Electronics

Screw type & Encapsulated bridge rectifiers

This section shows to families of SCR & Diode stacks, in one side we have power stacks mounted with screw type devices , available diodes and thyristors, allows the construction of cheap and robust rectifiers, and in the other side power stacks mounted with multichip modules, habitually 1~ and 3~ bridge rectifiers, DIN rail series available.

Power stacks with screw type devices:

RR Series

Standardized blocks “sink + diode” that allow the construction of circuits for rectification. Available three different heatsinks to optimize space, our profiles RG10090, RG11205 and RG11087.

RA Series

Power stacks with screw type semiconductors for medium power rectifying applications. This power stacks can be cooled by air, water or oil. This series is indicated for reliable rectifying systems at best cost/amp ratio.

Stacks with encapsulated bridge rectifiers:

CC Series

Power stacks mounted with multichip modules, habitually 1~ and 3~ bridge rectifiers. Habitually used for CC power supply for any industrial application. Compact design, ready to use and opcional varistor included for industrial applications.

CF Series

Compact designed bridge rectifiers for DIN rail mounting, including protection by input/output varistor and input/out fuse. Specially appropriate for the CC supplying in cabinets for elevators and cabinets with a lot of relays.

SSR Firing Boards

Power Control

GUASCH

offers you

SSR

SSR FIRING BOARDS

Zero-Cross

Instantaneous

Configurable

SSR FIRING MODULES (ZERO-CROSS)

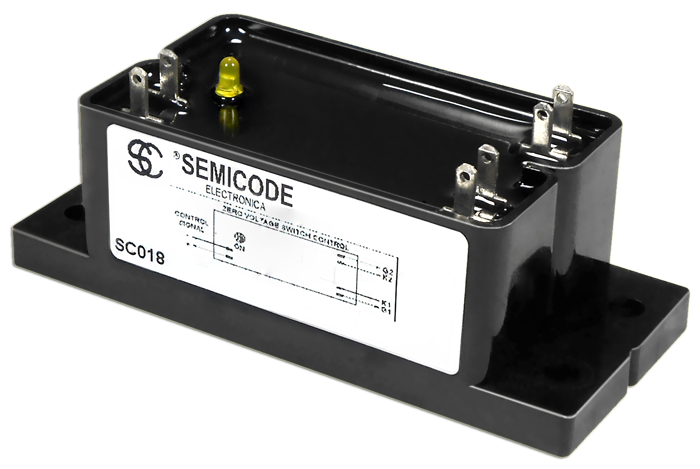

SC018

by SEMICODE

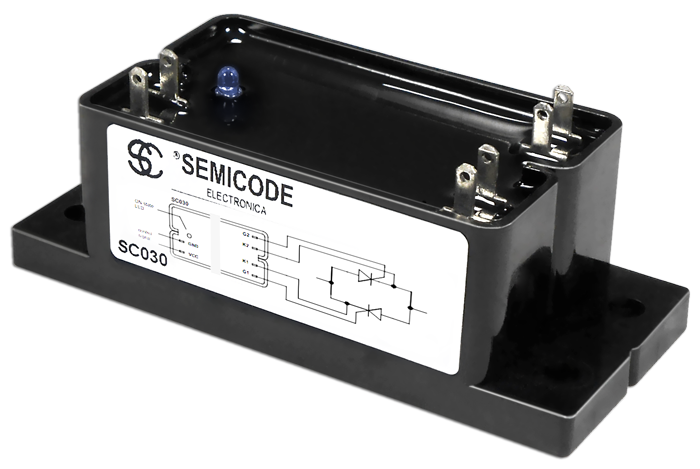

SC030

by SEMICODE

SSR FIRING MODULES (INSTANTANEOUS)

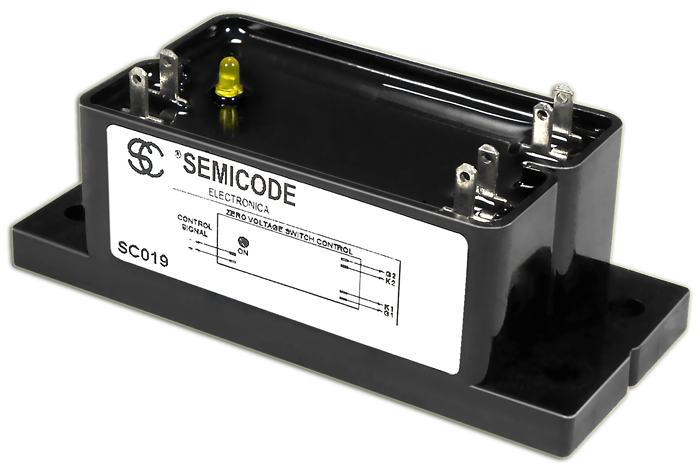

SC019

by SEMICODE

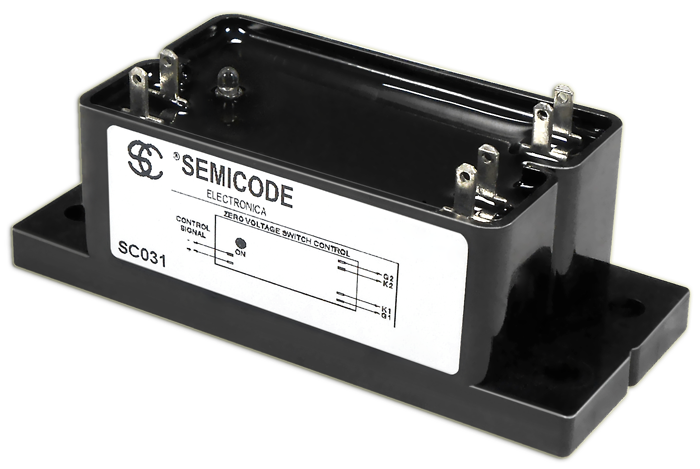

SC031

by SEMICODE

SSR FIRING MODULES (CONFIGURABLE)

SC1010

by SEMICODE

Need more information about this product?

SSR Firing Boards for Power Electronics

Solid State Relay Firing Boards

Zero-cross, instantaneous and configurable firing boards, designed to support voltages from 25V until 1200V, all our serie triggers 2 thyristors in antiparallel (W1C), which allows to obtain great advantages in the connection of loads. Furthermore, every board has a state control LED indiction.

Its devices are modular, using two or three modules/cards, it is possible to make three-phase applications (W3.2C and W3C).

Vrms [V]	Zero-Crossing	Instantaneous
25	SC010L

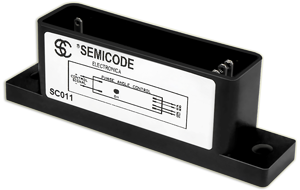

420	SC010	SC011

Vrms [V]	Zero-Crossing	Instantaneous
500	SC016
720	SC018	SC019
960	SC024
1200	SC030	SC031

Features SSR Firing Boards:

Configurable

It is intended to be used in applications where high reliability is needed. This card is configurable to trigger SCR’s with pulse trains synchronized with mains voltage, or in permanent mode. It can be configured to start at zero crossing or random phase.

Control signal can be a logic level referred to card reference (high input impedance) or floating optocoupled input (low input impedance). Built-in power supply is feed directly from the mains, either 230 VAC or 400 VAC, 50/60 Hz.

Zero-Cross

The main zero-crossing advantage is decrease the surge current through the load during the first conduction cycle and helps reduce the level of conducted emissions placed on the AC mains. That occurs because the switching of the relay from a non-conducting to a conducting state occurs when the AC mains voltage reaches the zero-crossing point of the sine-wave.

Instantaneous

Instantaneous solid-state relays turn on immediately after the application of the control signal. The output of the relay immediately begins to conduct load current as opposite to a zero-crossing relay.

Power Control

Power Control, PRODUCT CATEGORIES

SSR Firing Boards

Power Control

Compact firing boards modules for triggering of thyristor static relays with zero-cross, instantaneous or configurable switching. High voltage versions (up to 1200 VRMS) available.

SCR Firing Boards

Power Control

Range of SCR firing cards (SCR drivers), single phase or three phase, with voltage/current regulation and SSR switching modules. Close or open loop control regulation.

IGBT Drivers

Power Control

IGBT Drivers and adaptor boards providing neat driving solutions including protections and commonly-required driver functions as galvanic isolation or DC/DC converter.

High Efficiency Heatsinks

Heatsinks, Thermal Management

GUASCH

offers you

HEATSINKS

HIGH EFFICIENCY HEATSINKS

RG42080L Series

RG42120L Series

RG42080N Series

RG42120 Series

RG40080 Series

RG42080L Series

by GUASCH

RG42080N Series

by GUASCH

RG42120 Series

by GUASCH

RG40080 Series

by GUASCH

Need more information about this product?

High Efficiency Heatsinks & Accessories for Power Electronics

High Efficiency Heatsinks for Power Electronics

We offer to you our own manufactured and exclusive designed range of high efficiency heatsinks made of aluminium stacked and pressed single fins with our exclusive mounting process to achieve a great performance and outstanding structural integrity.

Nowadays the dissipation requirements in reduced spaces are growing, thanks to our technology you can improve thermal dissipation performance of your power equipment without compromising costs and dimensions.

These heatsinks are widely used in traction applications, windmills and high power supply designs. Available in two-side cooling with RG40080 series, even three-side cooling with our RG42080L and RG42120L range or just the standard one-side cooling at different heights with RG42080N and RG42120N.

We also offer customized designs for any requirement requested from our customers putting all our know-how and capabilities along with our high-efficiency heatsink innovative and versatile constructive technology. Also we have available a combi serie combining high efficiency heatsink with forced ventilation, see more information in Combi Thermal Management.

Machining examples four our heatsinks:

Standard High Efficiency Heatsink Family:

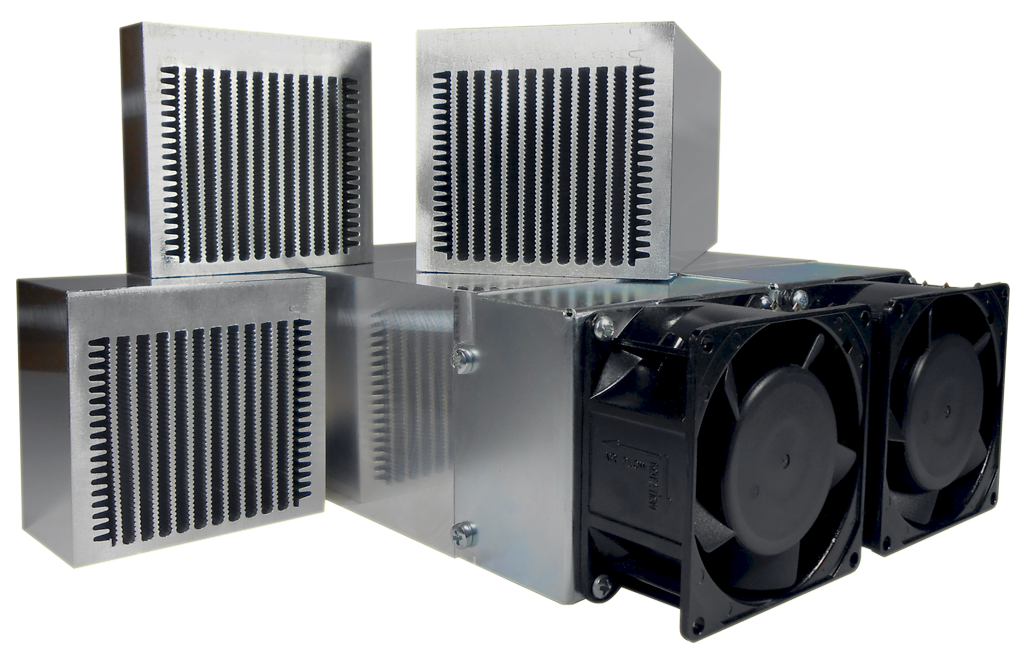

RG42080L Series

Profile of RG42080L series with straight fin 84 mm of total height. Its lateral sides can be also both mechanized and act as a dissipating superficies. Specially designed for working together with fan reducing total dimensions of the cooling system. Also can work together with radial fan, increasing the performance of this type of heatsinks.

RG42120L Series

Profile of RG42120L series with straight fin 127 mm of total height. Its lateral sides can be also both mechanized and act as a dissipating superficies. Specially designed for working together with fan reducing total dimensions of the cooling system. Also can work together with radial fan, increasing the performance of this type of heatsinks.

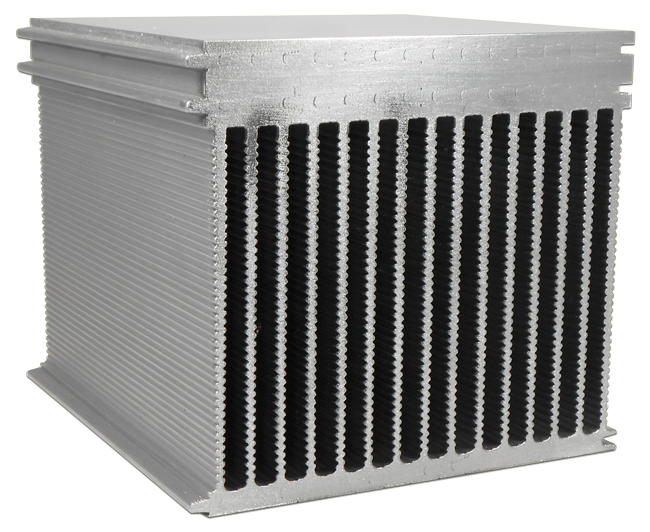

RG42080N Series

Profile of RG42080N series with straight fin 84 mm of total height. Specially designed for working together with fan reducing total dimensions of the cooling system. Also can work together with radial fan, increasing the performance of this type of heatsinks.

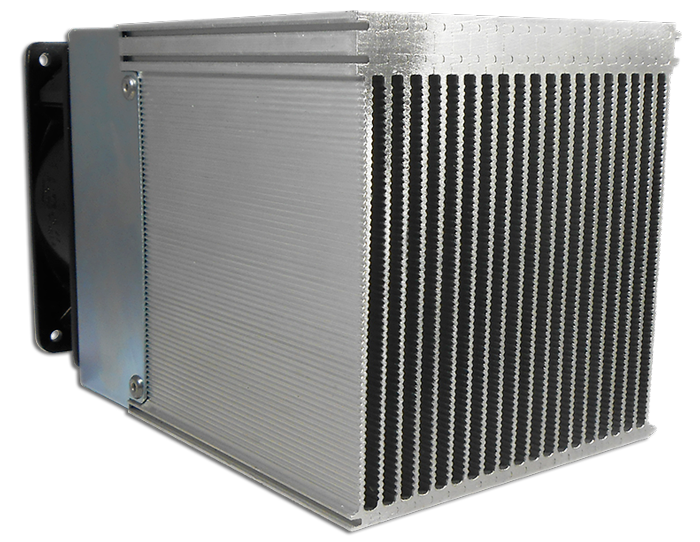

RG42120N Series

Profile of RG42120N series with straight fin 127mm of total height. Specially designed for working together with fan reducing total dimensions of the cooling system. Also can work together with radial fan, increasing the performance of this type of heatsinks.

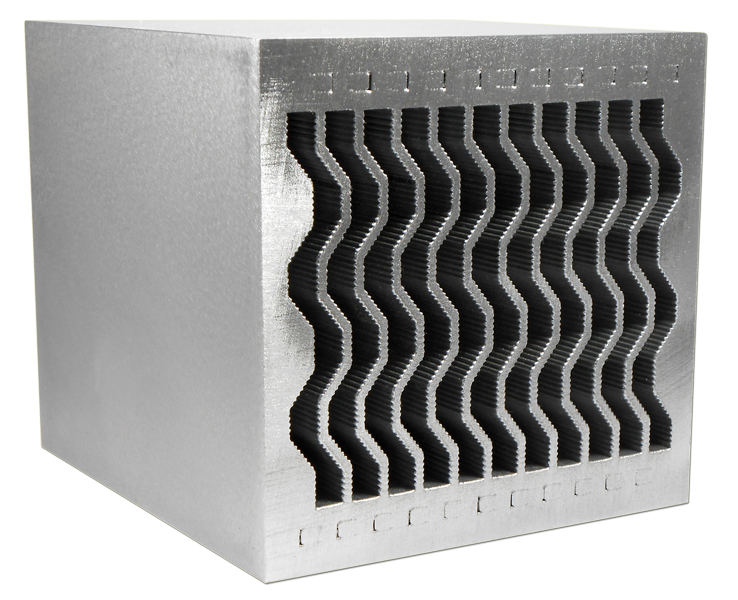

RG40080N Series

Profile of RG40080N series with curved fin, 90 mm or 163 mm of total height. This profile allows the two side components mounting, Specially designed for working together with fan reducing total dimensions of the cooling system.
