Standard Range of IGBT Stacks Medium Power

Standard range of IGBT stacks assemblies with IGBT power modules. Mostly, in these series we work with 34mm, 62mm and Econo-dual modules up to 1700V and with standard topologies for AC/DC and DC/DC power converters. Including all the necessary, drivers, sensors, etc.

IGBT Stacks Modular Concept

Designed three main blocks, rectifier block/DC-link/inverter to give an answer to the demand of this kind of power stack technologies. Any of these three blocks can be easily adapted to the application requirements. From this starting point, we can customize as per design in collaboration with our customers.

Customized Design of IGBT Stacks

We are able to deliver a complete power assembly, from designing to implementation, production and industrialization, meeting the required targets and providing a value added to any proposed design. Rectificadores Guasch along with our partners have a wide range of semiconductors, drivers, high efficiency cooling systems, bus-bars, snubbers, DC link capacitor banks MKP and electrolytic as well as the necessary mounting hardware to succeed on any power converter design.

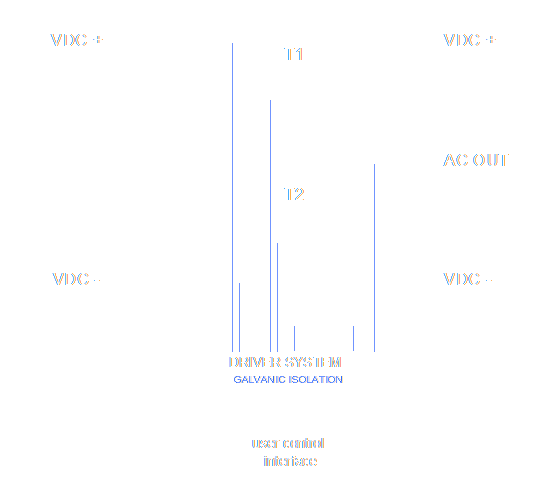

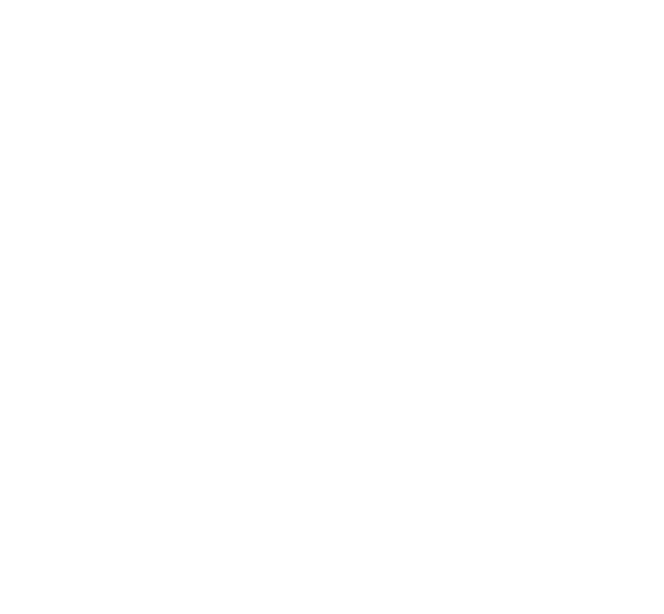

MTM Modular Series covers the medium power range of IGBT stacks with a compact design, a half bridge topology and capacitor bank this series of IGBT assemblies part as a constructive solution which allows a high versatility to compose customized IGBT power equipment. By simply stacking half-bridge modules a great range of topologies can be implemented, as choppers, three-phase inverters, back-to-back converters, etc.

Highlights:

  • Topology : 1/2B2IC
  • Capacitor bank included
  • Modular system
  • Current, voltage and temperature sensors included
  • Easy to parallel
guasch_stacks_igbt_serie_mtm

Related Downloads

guasch_stacks_igbt_serie_mtm

Related Downloads

see-moreShow more…

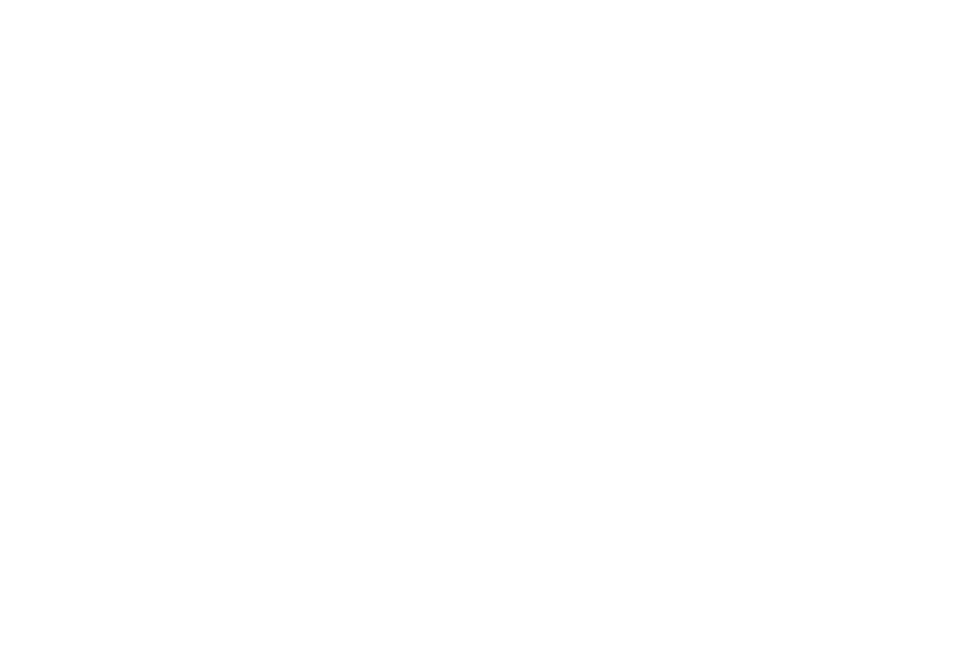

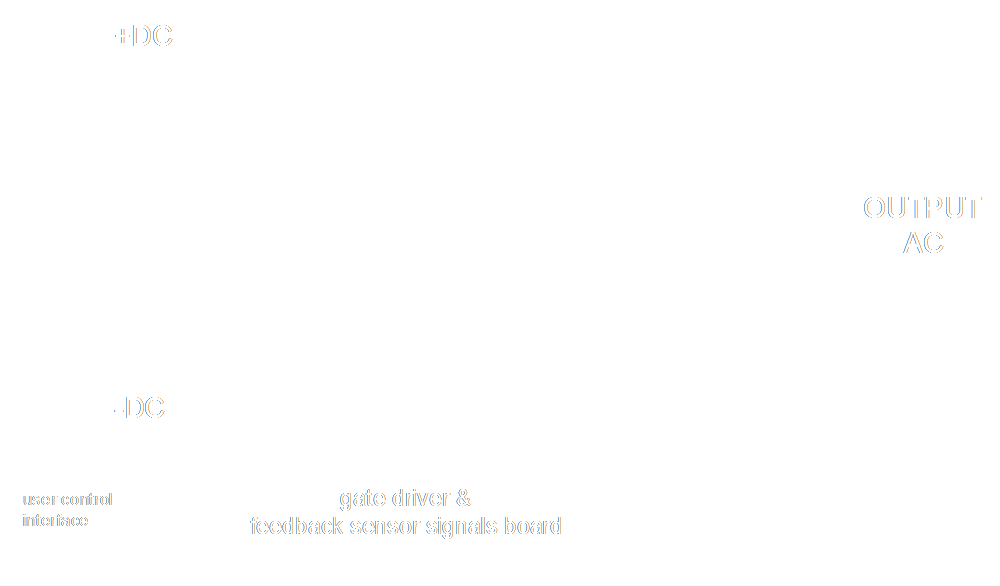

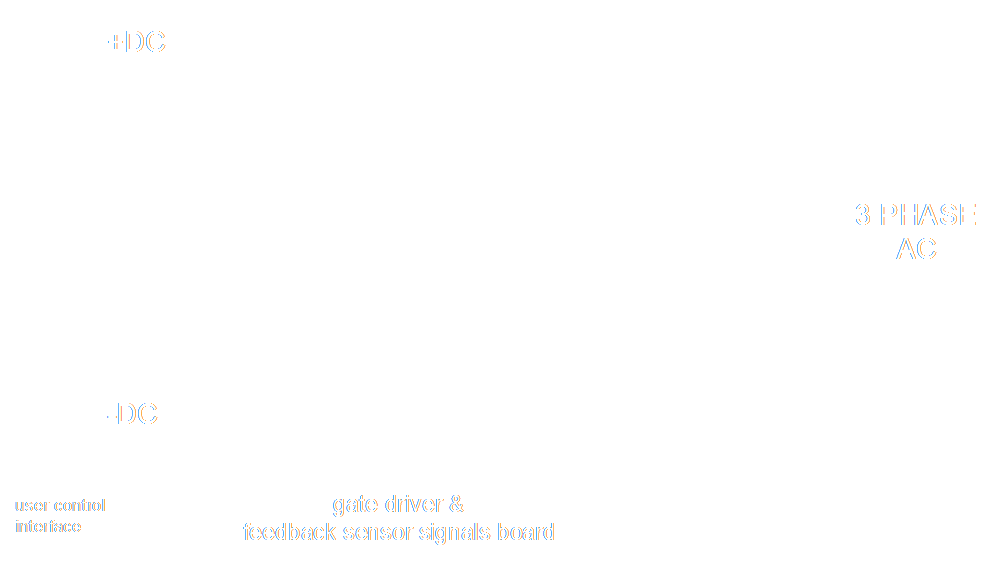

MTM Standard Series covers the medium power range of IGBT stacks designed as a modular concept in stages (rectifier/DC-link/inverter) easily scalable. B6I and B2I topologies with medium-range power IGBT modules (industry’s standard 62 mm). Current, voltage and temperature sensors included along sensor concentrator-adaptator board. Optical interface also available.

Highlights:

  • Topologies : B2I, B6I
  • Power: up to 300 kW (5 kHz)
  • Modular system
  • Sensor board included
  • Optical interface available
guasch_stacks_igbt_serie_mtm

Related Downloads

guasch_stacks_igbt_serie_mtm

Related Downloads

see-moreShow more…

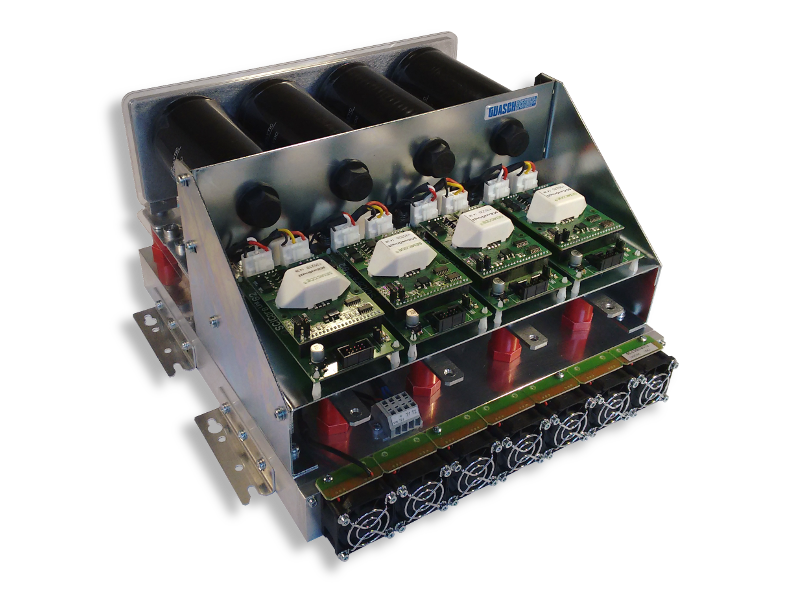

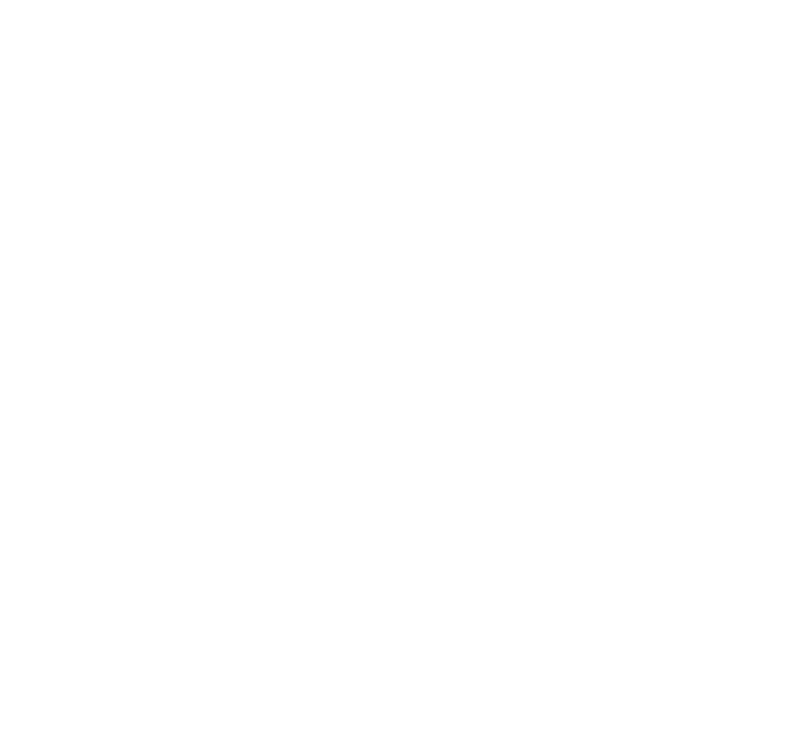

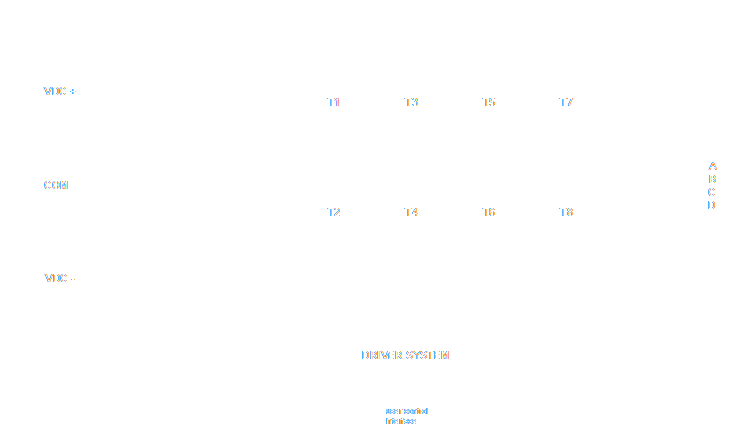

MTM 34mm Compact Series is a very compact desing of IGBT 2-level with neutral point capacitor bank power stacks in B6I and B8I topologies (other topologies under demand). This stack includes the IGBT modules, forced air heatsink, electrolytic capacitor bank and optoisolated drivers. Allows the implementation of converters, choppers, inverters for motor control, welding inverters, UPS or renewable energies, etc. This stack does not include the control’s logic, that is customer proprietary.

Highlights:

  • Multi-function IGBT converter
  • Capacitor bank with neutral point
  • Integrated drive units offering desaturation fault detection, power-supply failure, interlock of IGBTs and galvanic isolation
  • Forced-air cooled in a very compact design
mtm-igbt-stack

Related Downloads

mtm-igbt-stack

Related Downloads

see-moreShow more…

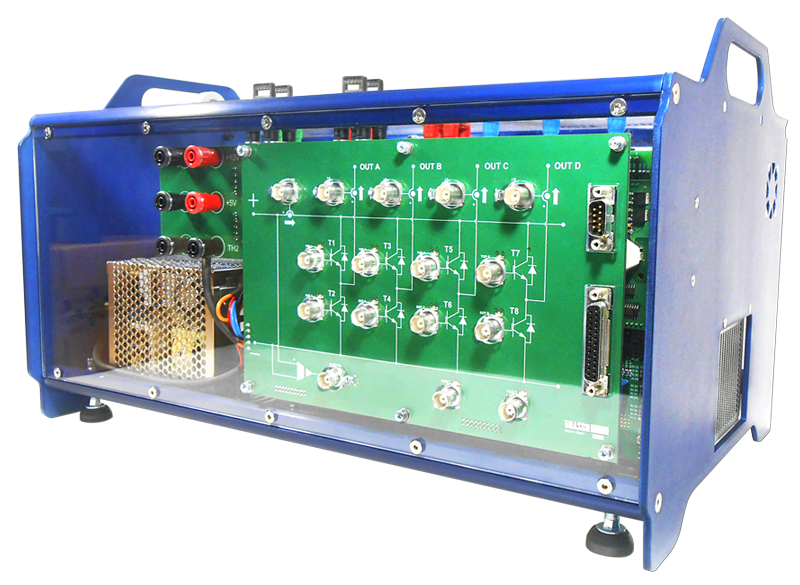

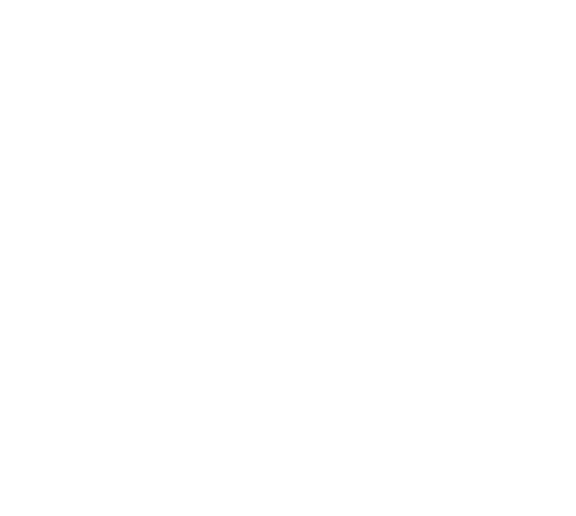

GPT-IGBT is a education stack for motor control and inverter applications, this stack can easily implement many different topologies using its B6U + CB + BRAKE + B6I + 1/2B2I layout. This stack includes IGBT modules, heatsink, optoisolated drivers, 4x output current sensors, 1x DC-link voltage sensor and temperature monitoring. Allows the implementation of converters, choppers, inverters for motor control, welding inverters, UPS or renewable energies, etc. This stack does not include the control’s logic, that is customer proprietary.

Highlights:

  • Multi-function IGBT converter
  • Transparent enclosure to allow visualization of every part
  • Integrated current sensors
  • Integrated voltage sensor
  • Integrated drive units offering desaturation fault detection, power-supply failure, interlock of IGBTs and galvanic isolation
  • Forced-air cooled in a compact design
gpt-igbt-stackgpt-2-igbt-stack

Related Downloads

gpt-igbt-stackgpt-2-igbt-stack

Related Downloads

see-moreShow more…

Besides our standard medium power IGBT power stacks we also can design and assemble, produce and industrialize any power converter proposed by our clients and partners. A great range of customized designs can be implemented with EconoDUAL and industry’s standard 62 mm and 34 mm modules using our high efficiency profiles or with liquid cooling heatsinks.

Capabilities and options:

  • Any topology or converter proposed
  • Wide power range
  • Current and voltage sensors
  • Drivers and protections included
  • Cooling system included
EconoDual liquid cooled stack.
EconoDual Modular stack.
Modular EconoDual stacks.

Completely new modular designs of 1/2B2I topology with EconoDUAL modules, easily stackable permitting a neat way to fully customize your designs using a single reference of IGBT+DC-Link stack which also includes the driver systems and all the needed current and voltage sensors.

We can also develop and integrate any of our designs and medium power IGBT stacks on a cabinet along all the protections and electronics surrounding the main power stack to offer a complete turnkey solution.

Please do not hesitate to ask us about your design or application needs.
