ELECTROLYTIC CAPACITORS

PG-6DI Aluminium Electrolytic

PG-6DI Aluminium Electrolytic
by ALCON
passive-componentsSlide thumbnail

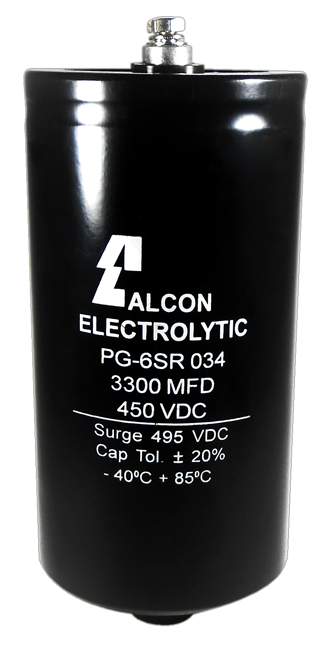

PG-6SR Aluminium Electrolytic

PG-6SR Aluminium Electrolytic
by ALCON
passive-componentsSlide thumbnail

HP3 Aluminium Electrolytic

HP3 Aluminium Electrolytic
by HITACHI
passive-componentsSlide thumbnail

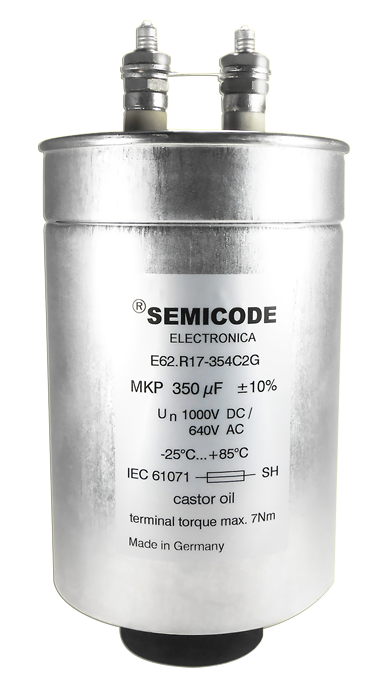

POWER FILM CAPACITORS

Metallized polypropylene

Metallized polypropylene
by SEMICODE
passive-componentsSlide thumbnail

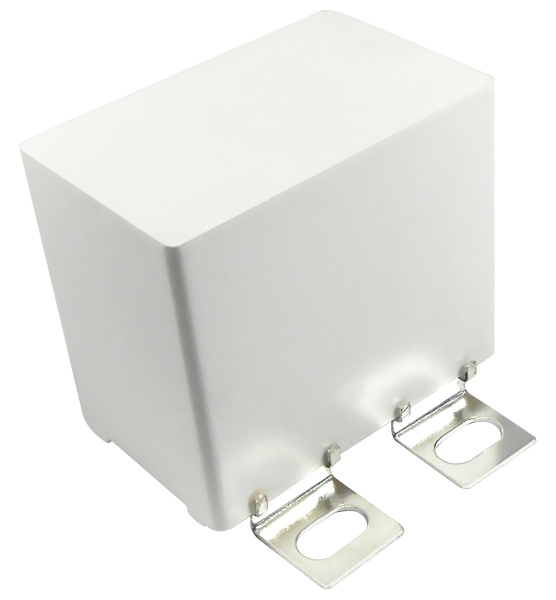

IGBT SNUBBER CAPACITORS

KPF metallised polypropylene

KPF metallised polypropylene
by ALCON
passive-componentsSlide thumbnail

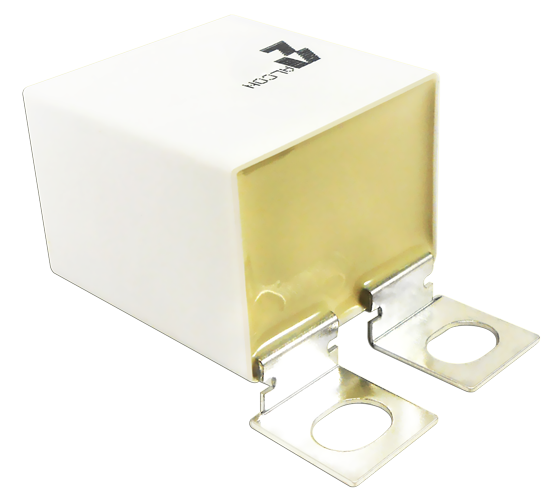

MP4 Double metallised

MP4 Double metallised
by ALCON
Contact us!

Need more information about this product?

Power Electronics Capacitors & Accessories
Contact us!

Electrolytic

We dispose of a broad range of aluminium electrolytic capacitors from 50 VDC until 500 VDC, they can operate with temperatures between -40ºC to +85ªC and their capacitance is from 330 µF to 250000 µF with a tolerance ±20%. The useful life is estimated as 5000 hours at maximum rated temperature, ripple current and voltage. Capacitors are available in screw terminals in three mounting styles: AEST, AEST-D and AEST-AL.

IGBT Snubber

These capacitors are used in high voltage, high current and high pulse application such as: IGBT protection circuits, snubber networks, energy conversion and control in power electronics. These capacitors are manufactured with extended foil electrodes with metallised polypropylene dielectric internal series connection. We offer a capacitance range from 0.1 µF to 3.3 µF, with a rated voltage VDC from 1000 V up to 2000 V and a rated voltage from 480 VAC up to 700 VAC. The workingntemperature range for this series spans from -40ºC up to +85ºC.

Power Factor Correction

We distribute PFC capacitors specifically designed for power factor correction applications as fixed capacitance correction for motors, dynamic PFC compensation equipment, etc. Its inner construction and manufacture process provides a very low losses, long life and constant capacitance. This capacitors also have a dielectric self-healing characteristic and are equipped with an overpressure expansion fused which physically disconnects when an internal overpressure occurs avoiding catastrophic capacitors destruction. Furthermore, we have gas and oil capacitors depending of your requirements. The voltage range is from 230V until 690V and the rated power in kVAr to compensate could be customized.

DC-Link

We distribute a complete range of MKP capacitors especially designed to work as DC-Link, DC filters, industrial inverters, UPS, etc. Built in aluminium case and dry-resin filled. This capacitor series have a high RMS current rating with a very low self-inductance wich make them a great choice for work as a DC power bank. Please check the product table from HYDRA for more information.

AC Motors

The AC motor capacitor range are run capacitors for single phase induction motors with auxiliary winding and three phase motors in Steinmetz circuits.

see-moreShow more…

Power Film

Power Film capacitors are designed for varied applications like induction heating, plasma generators, medical equipment, magnetizers, wireless electric vehicle chargers, auxiliary power supplies and resonant circuits.

Our Capacitor Partners:

ALCON offers a complete range of electrolytic capacitors screw mounting type, discharge capacitors can be manufactured.

capacitors-484x272

Related Downloads

Also ALCON manufactures film capacitors, special mention to MKP snubber for IGBT direct power module mounting ALCON has standard references catalogue but can offer special manufactured types at very competitive pricing, do not doubt to ask our sales department for your requirements.

logo-alcon-t-484

This capacitor manufacturer offers a complete range of MKP capacitors suitable for AC motors, DC-Link or PFC applications.

capacitors-hydra

Related Downloads

HYDRA offers a standard product catalogue but especific designs on demand are also possible at a very competitive prices. Please don’t hesitate to send us your capacitor project requirements or needs.

logo-hydra-t-484

IXYS UK can offer a range of power electronics capacitors to suit almost any application from filtering and smoothing DC voltages to GTO/IGBT snubber circuits and medium frequency applications.

IXYS UK also introduces a range of bespoke DC-link capacitors, designed specifically for use in applications designed to utilise our range of 2.5kV, 4.5kV and 6.5kV press-pack IGBT’s.
