SCR & DIODE PRESS-PACK STACKS

TQ Series

TQ Series
by GUASCH
guasch-igbt-stacks-bg-04Slide thumbnail

RP Series

RP Series
by GUASCH
guasch-igbt-stacks-bg-04Slide thumbnail

SC Series

SC Series
by GUASCH
Contact us!

Need more information about this product?

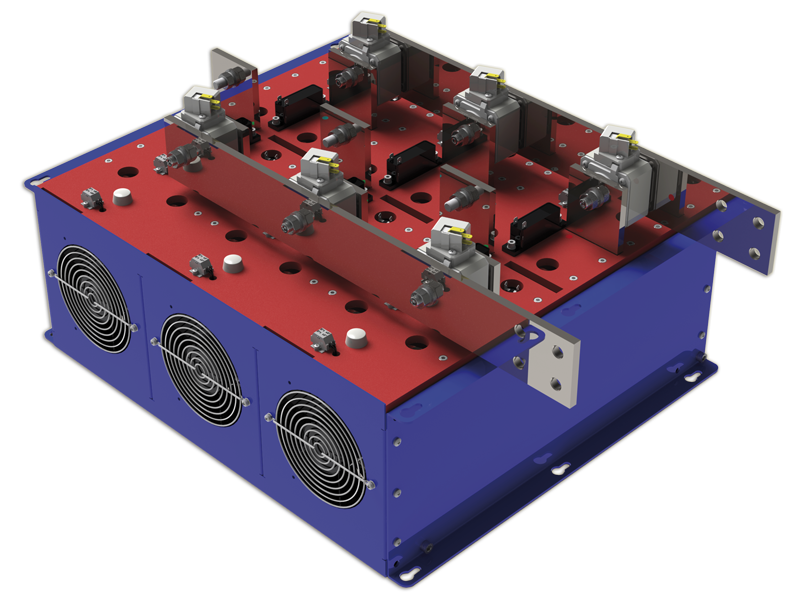

SCR & Diode Press-Pack Stacks for Power Electronics
Contact us!

Thyristor and diode modular system with high reliability thanks to the construction with press-pack devices. Standard types available (and possibility of customizing), optimized and codified, natural or forced cooling, this series includes tested protection (thermal switch, ultrarapid fuses and RC network). You can get from this series a complete industrial rectifier, ready to use.

Highlights:

  • B6C, B6U, W3C topologies
  • M1U under requirement
  • Standard range
  • Datasheet by type
  • Compact design
  • Ready to connect
TQ series

Related Downloads

TQ series

Related Downloads

see-moreShow more…

W1C power stacks of medium power. Its configuration make easy to use in AC switches and change of polarity. Thyristors are selected for this series in order to get the best performance. Standard working voltage is 400VRMS but can be made in higher types.

Highlights:

  • W1C topologies
  • Standard range
  • High efficiency
  • Standard working voltage up to 400V
  • Ready to connect
  • Selected thyristors pairs
TK series

Related Downloads

TK series

Related Downloads

Complete stacks with thyristors and diodes that allows to get the main power topologies. This series is the upper step of the power module systems, when the power module design arrive to the limit, this series is the next solution. Made with our 4 different heatsink profiles from RG15000 extruded series and habitual press-pack devices available from our stock.

Highlights:

  • Wide range topologies
  • Long term reliability
  • Overload capacity
  • Ready to connect
  • Low cost
RP series

Related Downloads

RP series

Related Downloads

HP series are an air cooling block design “heatsink+semiconductor+heatsink” that can be mounted at a customer convenience in industrial systems, we offer a calculate performance guide calculation depending on application circuit and cooling system. Habitually used in big surface treatment rectifiers and air cooling high power industrial systems.

Highlights:

  • Modular system
  • Flexible application
  • High efficiency
  • Overload capacity
  • Ready to use
  • Working voltage up to 400 VRMS
HP series

Related Downloads

HP series

Related Downloads

High power liquid cooling systems. Can be mounted with high frequency thyristors, phase control thyristors or diodes. These systems can be customized under customer requirements. Habitually used in induction heating systems or big industrial systems where the liquid cooling is easily available.

Highlights:

  • B6C, M3.2U topologies
  • Liquid cooling
  • Datasheets by type
  • Ready to use
SW series

Related Downloads

SW series

Related Downloads

see-moreShow more…

W1C liquid cooled anti-parallel thyristor power stacks. This series is suited for AC switches in welding by resistance. Due to its reliable and compact design are used in industrial cabinets with aggressive atmosphere and strongly recommended for demanding applications.

Highlights:

  • W1C topology
  • Standard range
  • Datasheets by type
  • Easy mounting
  • Ready to use
SC series

Related Downloads

SC series

Related Downloads

see-moreShow more…

HW series are a liquid cooling block design “heatsink-semiconductor-heatsink” that can be mounted at a customer convenience in industrial systems. Can be mounted as a free-wheeling diode or to combine each block to create a complete high power topologies.

Highlights:

  • Modular system
  • Flexible application
  • High efficiency (optimized)
  • Long term reliability
  • Overload capacity
  • Short delivery time
  • Low cost
  • Topologies: M1U, M1C, B2U, W1C…
  • Other topologies by demand
  • Ready to use
HW series

Related Downloads

HW series

Related Downloads

see-moreShow more…
